The oil pan is one of the most critical components in internal combustion engines. Engine operation without an oil pan is impossible. This part is also known by various names such as crankcase or oil sump.
In this article from Espayder, we will thoroughly examine this component and explore supplementary points surrounding it. If you want to answer questions like “What is an oil pan?” or “What is a car oil pan?”, continue reading. We will also cover topics such as oil pan welding and oil pan cracking.
🔗 بیشتر بخوانید: استمهال اقساط تسهیلات شرکتهای دانشبنیان خسارتدیده در جنگ تصویب شد_اسپایدر
🔗 Read More: اختلاف شبکههای پخش مسابقات المپیک بر سر منفعت گیری از هوش مصنوعی_اسپایدر
🔗 Read More: Building Virtual Worlds with Generative AI and Advanced Cameras + Photos_Espayder
آخرین مطالب
- بازدید رئیسجمهور از دستاوردهای فناورانه کاراشاب در کنفرانس ملی مخابرات ۱۴۰۴
- یوتوب قابلیت ترقی کیفیت ویدیو با هوش مصنوعی را به اپلیکیشن تلویزیون اضافه کرد
- بهترین و احساسیترین انیمههای غمانگیز؛ ۱۰ اثر ماندگار برای اشکریزی
- قابلیت را به اضافه کرد؛ ساخت آواتار شخصی برای ویدیوهای هوش مصنوعی
- تأثیر مشکلات مالی والدین بر مهارتهای اجتماعی کودکان؛ نتایج یک تحقیق طولی
🔗 بیشتر بخوانید: دوازدهمین دوره ماراتون برنامه نویسی تلفن همراه کشور_اسپایدر
What Is a Car Oil Pan and What Is Its Function?
The oil pan, correctly referred to as the crankcase, is a key component in internal combustion engines located at the lowest part of the engine, attached to the cylinder block. In English, this part is called the Oil Pan or sump. Its function becomes clear from its name.
🔗 Read More: اکثر چتباتها را میتوان به اراعه جوابهای خطرناک وادار کرد_اسپایدر
The oil pan’s mission is to collect and store engine oil after the lubrication cycle completes. This component acts as the primary oil reservoir. The oil pump connects to the oil pan and supplies the oil needed for recirculation through the system. The oil pan typically resembles a large, deep tray that holds a significant volume of oil, hence the English term “oil pan.”
🔗 Read More: MG RX5 Hybrid Version Named Roewe ERX5 Arrives in Iran_Espayder
Where Is the Oil Pan Located in a Car?
As mentioned earlier, the car oil pan sits beneath the cylinder block at the lowest point of the engine. This positioning exposes the part to road hazards such as speed bumps, rocks, and sharp objects. To protect it, a metal or plastic shield called an engine undertray is installed. Note that this component connects to the cylinder block via the oil pan gasket to prevent any oil leakage.
Role of the Oil Pan in the Lubrication System
The oil pan plays a vital role in the car’s lubrication system. It performs several functions in internal combustion engines, detailed below:
- Storage: The oil pan serves as the reservoir for all engine oil.
- Cooling: Due to its large surface area and exposure to ambient air, the oil pan helps cool the stored oil while the car is stationary or moving.
- Supplying Oil to the Pump: The oil pump’s pickup tube sits inside the oil pan. Oil is drawn from here toward internal engine components.
- Stabilizing Oil Level: In more advanced vehicles, the oil pan is designed to minimize oil sloshing during hard acceleration or sudden braking, ensuring the pump always has adequate oil supply.
Components, Materials, and Structure of the Car Oil Pan
The car oil pan consists of several key parts: the gasket, drain plug, undertray, and baffles (internal steel plates). Details follow:
- Main Tray or Oil Pan Body: The primary oil reservoir, typically made of steel or aluminum.
- Oil Pan Gasket: A critical seal placed between the oil pan and engine block to prevent oil leaks.
- Drain Plug: Located at the lowest point of the oil pan, used to drain old oil during changes. It features a metal or rubber washer for a complete seal.
- Baffles, Plates, or Internal Steel Sheets: Internal plates designed to control oil movement during aggressive driving and prevent oil starvation.
Body Material and Mechanical Strength
As noted, the oil pan endures external impacts and temperature fluctuations, requiring appropriate durability. Oil pans are typically made of steel or aluminum.
Pressed steel sheet is the most common and cost-effective material. It offers good impact resistance but weighs more than aluminum.
Aluminum is another material used for oil pans, requiring casting techniques. Aluminum pans are lighter and often feature cooling fins to dissipate heat. They are typically found in sports or luxury vehicles.
Difference Between Steel and Aluminum Oil Pans
| ویژگی | کارتل فولادی (فلزی) | کارتل آلومینیومی |
| وزن | سنگینتر | سبکتر |
| هزینه | ارزانتر | گرانتر |
| خنککاری | ضعیفتر | بهتر (بهعلت رسانایی بهتر آلومینیوم) |
| مقاومت در برابر ضربه | طبق معمولً انعطافپذیرتر (مقداری خم میبشود) | شکنندهتر (با ضربه شدیدتر گمان ترک خوردن وجود دارد) |
| کاربرد | خودروهای اقتصادی و معمولی | خودروهای اسپرت و مدرن |
Types of Car Oil Pans
Generally, two types of oil pans exist in vehicles, classified by oil management method: wet sump and dry sump.
What Is a Wet Sump?
The wet sump is the most common lubrication system used in most standard vehicles. Here, the oil pan sits under the engine, storing all engine oil when the lubrication cycle completes. The oil pump draws oil directly from this pan. Wet sumps are simple, highly reliable, and low-cost.
What Is a Dry Sump?
Dry sump systems are used in sports and racing cars. The pan under the engine is very shallow. Oil is rapidly scavenged by scavenge pumps and transferred to a separate remote reservoir. Key structural and functional differences between dry and wet sumps include:
| ویژگی | کارتل تر (Wet Sump) | کارتل خشک (Dry Sump) |
| محل ذخیره روغن | مستقیماً در کارتل زیر موتور | مخزن روغن خارجی (Separate Reservoir) |
| تعداد پمپ | یک پمپ مهم | یک پمپ سختی و چند پمپ مکش |
| ارتفاع موتور | موتور بلندتر (کارتل زیر آن است) | موتور مختصرتر (قابلیت نصب پایینتر) |
| کنترل روغن در پیچها | محدود (گمان افتروغنرسانی) | عالی (روغن همیشه در مخزن خارجی است) |
| کاربرد | خودروهای شهری و خانوادگی | خودروهای مسابقهای و سوپر اسپرت |
Symptoms of Oil Pan Damage and Cracking
Oil pan failure, manifesting as cracks or leaks, is a serious issue that can jeopardize engine health. Several indicators signal this problem:

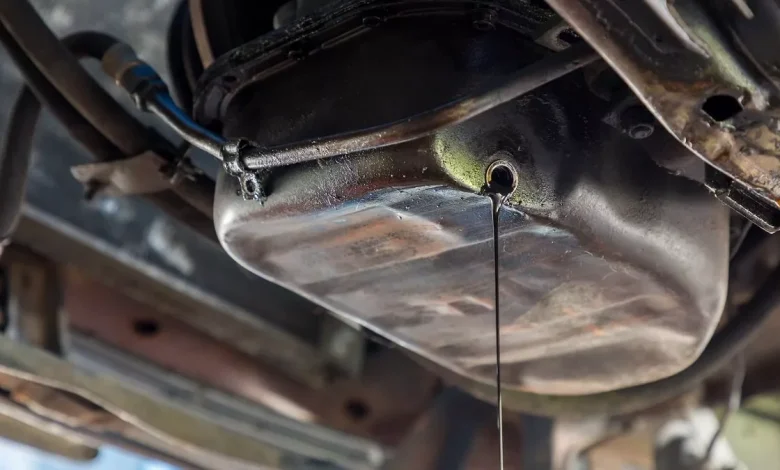

Oil Leaks Under the Vehicle
The most common sign is oil leakage and visible oil spots under the car, especially after prolonged parking. Leaks can result from direct impact to the pan body or gasket wear. Over-tightening or gasket failure at the drain plug can also cause leaks.
Oil Warning Light Illumination
If the pan is punctured or severely leaking, oil level drops. When it falls below the safe threshold, the oil pressure sensor triggers the warning light. Immediately shut off the engine and check the oil level. Continuing to drive with the oil light on causes severe engine damage. Abnormally low oil levels may also indicate oil burning.
Related reading: What Is Engine Oil Burning and What Are Its Symptoms?
Unusual Engine Noises
Severe oil loss from pan leaks leads to insufficient lubrication of moving parts. If the pan leaks, abnormal noises from the crankshaft, connecting rods, and valves will appear. Metal-on-metal scraping sounds indicate friction and internal engine damage.
Causes of Oil Pan Failure or Cracking
Various factors can cause oil pan failure, affecting it physically or chemically. Below we examine the causes:
Direct Impact to the Oil Pan
The most common cause of cracking or puncturing is direct impact from external objects. This occurs when driving over large speed bumps at high speed, hitting rocks or metal debris, collisions damaging the pan area, or off-roading.
High Temperature and Thermal Shock
Thermal shock is another leak cause. Prolonged engine operation without proper lubrication raises temperatures. If cold water contacts the hot pan, thermal shock occurs, causing cracks.
Design or Manufacturing Defects
Sometimes the driver isn’t at fault; the pan fails due to poor manufacturing. Use of inferior alloys, improper gasket installation, or defective drain plug threads increase vulnerability to leaks.
Ways to Prevent Oil Pan Damage
You now understand the oil pan is sensitive and critical. Protection is essential. Here are preventive measures:
Use an Engine Undertray
Installing an undertray is the best prevention. Made of steel, aluminum, or plastic, these shields absorb potential impacts and prevent rocks and debris from striking the oil pan.
Check Oil Level Regularly
Weekly oil level checks are vital. This reveals whether a leak exists. If detected, you can identify and resolve it early.
Related reading: Correct Method to Check Car Engine Oil
Perform Scheduled Maintenance on Time
Regular servicing maintains oil pan and lubrication system health. Oil and filter changes occur, and the pan gasket and drain plug condition are inspected to confirm no leaks.
Repair Methods and Fixing Oil Leaks from the Oil Pan Drain Plug
To repair a damaged oil pan, first assess the damage extent. Minor damage may be repairable for temporary use. Major damage requires full replacement.
Temporary Repair with Adhesive or Welding
For minor leaks, small cracks, or tiny holes, adhesive or welding can serve as an emergency fix to keep the vehicle running briefly. Welding must be done by a skilled welder after completely draining the oil.
Complete Oil Pan Replacement
When the pan has serious structural damage, large or multiple cracks, or stripped drain plug threads, full replacement is necessary. The oil must be fully drained, mounting bolts removed, old pan detached, block surface cleaned, and new pan installed with a fresh gasket.
Approximate Costs of Oil Pan Repair or Replacement
Costs vary based on the required work. Rethreading the drain plug with adhesive is the cheapest. Welding small cracks costs more, depending on welder skill.
Complete replacement carries the highest cost. This includes purchasing the pan and components, installation, plus oil and filter changes. As of 2025 (1404 Solar Hijri), full replacement for a typical Iranian car with associated services ranges from 16 to 20 million Tomans.
Conclusion
At first glance, the oil pan seems like a minor component merely collecting oil. Deeper inspection reveals it as the guardian of the lubrication system’s smooth operation. Its under-engine position exposes it to serious physical damage, necessitating protection. Installing a protective undertray, performing scheduled maintenance, and regularly checking oil levels will ensure this component’s longevity.
Frequently Asked Questions
What is a car oil pan and what role does it play?
The oil pan (or crankcase) is a reservoir at the bottom of the engine that stores engine oil and lubricates components, protecting parts like the crankshaft.
Where is the oil pan located in a car?
The oil pan sits under the engine, at the end of the cylinder block. It is the lowest front component and usually easily visible from underneath.
What is the function of the oil pan gasket?
The oil pan gasket seals the junction between the engine block and pan body, preventing oil leaks. A damaged or dried gasket causes leaks.
What is the oil pan drain plug and what is its use?
The drain plug is used to empty engine oil. During oil changes, opening this plug drains old oil from the pan.
What adhesive is suitable for oil pan repair?
High-temperature RTV silicone sealant or liquid gasket adhesive are suitable for temporary crack sealing or reinstallation. Avoid generic adhesives.
What is the English term for car oil pan?
The car oil pan is called Oil Pan or Sump in English, both referring to the engine oil reservoir.
